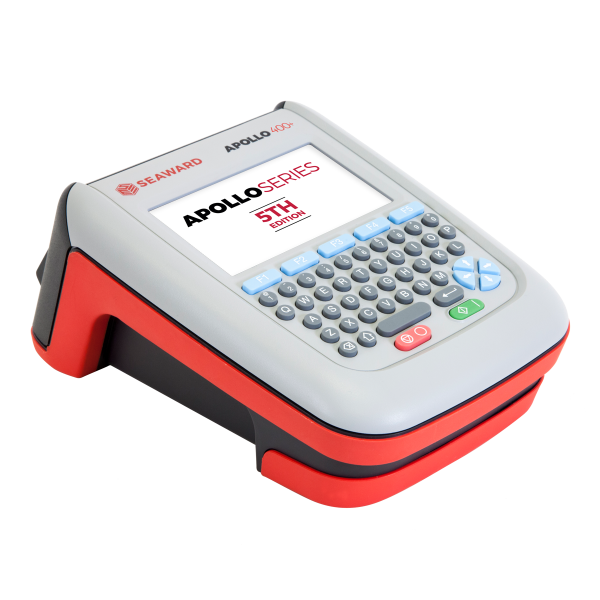

Apollo 400+
SPECIFICATIONS & MANUALS
If you're looking for the Apollo 400+ datasheet featuring full
technical specifications or the instruction manual, you can find them here.
Manuals
Datasheets
Specifications
| Insulation Resistance (IR) | |
|---|---|
| Test Voltage | 500V / 250VDC @ 1mA nominal |
| Measurement Range | 0.10MΩ to 19.99MΩ |
| Pass Value | User defined |
| Protective Conductor Current/Load | |
|---|---|
| Test Voltage | Supply voltage, maximum load current 16A |
| Measurement Range | 0.25mA to 19.99mA |
| Pass Value | User defined |
| Load Power/Current | |
|---|---|
| Test Voltage | 230V +10%, -15%, maximum load current 16A |
| Test Duration | Programmable up to a maximum of 240s |
| Measurement Range | 0.50A to 16.0A |
| RCD Test | |
|---|---|
| Test Voltage | 230V +10%, -15% |
| Test Current | 30mA / 150mA rms sinusoidal |
| Display Range | 0ms to 2000ms |
| Test Method | Internal isolation to avoid tripping distribution board RCD |
| General | |
|---|---|
| Memory size | up to 2,000 records |
| Weight | 1.5kg |
| Dimensions | 230mm x 150mm x 100mm |
| Power Source | Mains or rechargeable battery pack |
| Supported Printers | Test n Tag Pro (339A980) [br] Test n Tag Elite 2 (339A989) |
| Earth Continuity (Rpe) | |
|---|---|
| Test Current | +/- 200mA DC |
| Measurement Range | 0.05Ω to 19.99Ω |
| Pass Value | User defined |
| IEC Lead Test | |
|---|---|
| Test Voltage | 5VAC nominal |
| Test | Live / Neutral Checks for o/c, s/c and crossed polarity |
| Touch Current | |
|---|---|
| Test Voltage | Supply voltage, maximum load current 16A |
| Measurement Range | 0.10mA to 5mA |
| Pass Value | User defined |
| Substitute (Alternative) Leakage Current | |
|---|---|
| Test Voltages | >25VAC <50VAC |
| Measurement Range | 0.20mA to 19.99mA |
| Pass Value | User defined |
| Power Socket Test | |
|---|---|
| Voltage Range | 207V – 253VAC |
| Indicates configuration of voltage potential:- | Line potential phase to earth |
| Line potential phase to neutral | Line potential neutral to earth |
