PrimeTest 100
IET 5th Edition and BS EN50699 Compliant

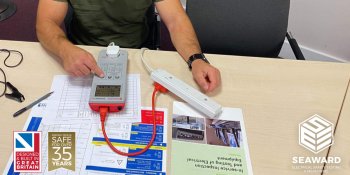

The PrimeTest 100 portable appliance tester is battery powered and handheld to allow for fast and efficient testing with clear PASS/FAIL indication and test result values. A simple range of tests are selected at the push of a button to test earthed equipment, double insulated equipment or mains cords and leads.
- Selectable 250V/500V Insulation test
- Long lead test
- User selectable earth continuity limits
- Class II FE Test
- Can be used with the Seaward PATMobile App
More about the PrimeTest 100
One of the most popular PAT testers in the UK, the PrimeTest 100 has built-in test sequences and smart technology to help you test a wide range of equipment quickly and easily.
Simply push one button to run through the pre-programmed test sequences for Class 1 equipment, Class 2 equipment or Leads. Connect the PrimeTest 100 to a power outlet and it will also check the socket wiring and mains voltage.
Its large digital display shows test result values, as well as a PASS or FAIL indication. The PrimeTest 100 is portable and battery powered, to help you work faster and more efficiently, with no need for a mains connection.
Seaward’s unique ‘ZAP’ technology ensures that earth continuity measurements are accurate in situations where other testers struggle to provide reliable measurements, such as measuring through rust, limescale and other surface contamination.
The PrimeTest Series Testers can be used with our free PATMobile App as part of a combined record keeping and reporting solution. The PATMobile App works with the PrimeTest 100 to enable the input and storage of test records alongside barcode scanning, label printing, photo tagging and reporting.
Built in Britain and used by 1,000’s of organisations every day.
View the PrimeTest 100 Overview Video
Compare the PrimeTest Series
| General Features | PrimeTest 50 | PrimeTest 100 | PrimeTest 250+ |
| BS EN50699 |  |
|
|
| 5th Edition Compliant | |
|
|
| On-board memory | 999 records | ||
| Handheld | |
|
|
| Battery/mains operated | Battery | Battery | Battery (requires 230Vac supply for leakage tests) |
| Scanner & printer compatible | Printer only (PATMobile app*) |
Printer only (PATMobile app*) |
Printer only (PATMobile app*) Test n Tag Pro Serial Printer |
| Electrical test functions | PrimeTest 50 | PrimeTest 100 | PrimeTest 250+ |
| Accurate earth continuity circuit | |
|
|
| Mains supply check | |
|
|
| IEC lead test | |
|
|
| Earth continuity | 200mA | 200mA | 200mA |
| Insulation resistance | 250V/500V | 250V/500V | 250V/500V |
| PE conductor current (earth leakage) | 230V only | ||
| Touch current | 230V only | ||
| Alternative substitute leakage | |
|
|
| RCD test | |
||
| 3 phase leakage | Requires adaptor | ||
| Data transfer features | PrimeTest 50 | PrimeTest 100 | PrimeTest 250+ |
| USB download | |
||
| PC download/upload | Download only | ||
| Remote data transfer via mobile device | Manual entry (PATMobile app) |
Manual entry (PATMobile app) |
Manual entry (PATMobile app) |
PrimeTest 100 PAT Testing Kits
The PrimeTest 100 PATBag Kit
This PAT testing kit includes:
- PrimeTest 100 PAT Tester
- Online PAT testing training course with exam
- Durable, purpose-made PATBag with compartments for all of your PAT accessories and labels
- 110V adaptor
- 500 pass + 500 fail labels
- Seaward Guide to PAT Testing
- PAT reference look-up card
- PAT logbook
- Quick start video guide PAT Business builder CD-ROM and booklet
Part number: 345A925
PATMobile Bundle
The PATMobile accessory bundle has been created to give those using manual PAT Testing equipment the ability to create digital results storage, reporting and labelling solutions when used in conjunction with our PATMobile App
- Test n Tag Pro Bluetooth label printer
- 4 x Test n Tag label rolls
- IEC to Cloverleaf adaptor
- PrimeTest Checkbox
- Durable, purpose-made PATBag with compartments for all of your PAT accessories and labels
- Online Guide to PAT Course
PATMobile is compatible with both IOS and Android
Part number: 403A961
Case Studies
Seaward PrimeTest Delivers for PAT Training Company
Seaward testers are being specified by a commercial training company to deliver improved levels of PAT (portable appliance testing) training to organisations across the UK. South ...
Seaward helps voluntary organisation keep people safe
When a volunteer-led organisation approached Seaward to see if it could help keep its customers safe, we were happy to help. We provided a PrimeTest PAT testing device to Bath Re...
Seaward shows support for youth charity
A charity which helps vulnerable young people has been able to provide an extra service thanks to Seaward. We provided a PrimeTest PAT testing device to The Anchorage Trust, allo...
Request a Quote
Optional Accessories
Technical Specifications
| Earth Continuity | |
|---|---|
| Test Current | +/- 200mA DC |
| Display Range | 0.00 – 19.99Ω |
| Pass Value | 0.1Ω/0.2Ω/0.3Ω |
| IEC Lead Test | |
|---|---|
| Tests Performed | Earth continuity, Insulation resistance, Live, neutral continuity and polarity |
| Equivalent Leakage Class II | |
|---|---|
| Test Voltage | 40V, 50Hz AC nominal |
| Display Range | 0.10 – 9.99mA |
| Pass Value | 0.5 / 5.0mA |
| Insulation Range | |
|---|---|
| Test Voltages | 250V/500VDC |
| Display Range | 0.20 – 19.99MΩ |
| Pass Value | 1MΩ/2MΩ |
| Equivalent Leakage Class I | |
|---|---|
| Test Voltage | 40V, 50Hz AC nominal |
| Display Range | 0.10 – 9.99mA |
| Pass Value | 3.5 / 5.0mA |
| Power Socket Test | |
|---|---|
| Input Voltage Range | 230V +10% - 15% AC |
| Indicators | Line to earth voltage, Line to neutral voltage, Neutral earth |
