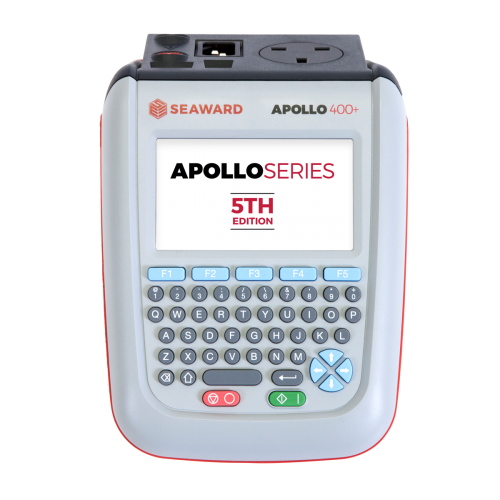

Apollo 400+
5th Edition and BS EN50699 Compliant
The Apollo 400+ features a comprehensive range of electrical safety tests with user configurable test sequences and has storage for up to 2,000 test records. Compatible with our Seaward PATGuard 3 software for record keeping and reporting.
- Comprehensive range of tests
- User customisable test sequences
- Remotely send data from the field
- USB Download
- Battery and mains powered
More about the Apollo 400+
This PAT tester is a cost-effective downloadable solution that features a comprehensive range of electrical safety tests to ensure compliance with the 5th Edition Code of Practice and BS EN50699.
With a new processor, testing is now faster and more efficient than ever before, and our new Wifi Hotspot feature means it has never been easier to get results back to your office via your mobile device.
The Apollo 400+ is ideal for mid-volume PAT testing where detailed records are required and even
Streamline the PAT testing process further by using the Apollo 400+ with a compatible wireless label printer, barcode scanner and PATGuard 3 software.
*Additional Test Lead Required (Part Number: 380A983)
Apollo 400+ PAT Testing Kits
The Apollo 400+ Elite Kit
This PAT testing kit includes:
- Apollo 400+ PAT Tester
- Test n Tag Elite 2 Printer
- QR Bluetooth Barcode Scanner
- 2x Elite durable labels 25mm
- 2x Elite durable labels 75mm
- Apollo Kit Carry Case
- 110V Test Adaptor
Part number: 380A9906
The Elite Kit is also available with PATGuard 3 software. Part number: 380A9907
The Apollo 400+ Pro Kit
This PAT testing kit includes:
- Apollo 400+ PAT Tester
- Test n Tag Pro Printer
- 1D Bluetooth Barcode Scanner
- 2x Pro labels 25mm
- 2x Pro labels 75mm
- Apollo Kit Carry Case
- 110V Test Adaptor
Part number: 380A9902
The Pro Kit is also available with PATGuard 3 software. Part number: 380A9903
PATGuard 3
PATGuard 3 is the ultimate PAT testing software with health and safety reporting. Not only does it offer fast and comprehensive record management, but it also gives you the ability to record any workplace test or inspection, auto schedule next tests, and create invoices & reports for clients.
Click on the link below to find out more and to Download your 30 day free trial today.
Compare the Apollo series
| General Features | Apollo 400+ | Apollo 500+ | Apollo 600+ |
| 5th Edition and BS EN50699 Compliant |  |
|
|
| Battery & mains powered | |
|
|
| Large internal memory | Up to 2,000 records | Up to 10,000 records | Up to 50,000 records & 2,000 visual inspection images |
| Bluetooth scanner & printer compatible | |
|
|
| Password controlled user accounts | |
|
|
| Set up multiple user accounts with varying levels of privileges | |
|
|
| Clone facility to set up multiple testers | |
|
|
| Checkbox supplied as standard | |
|
|
| Test Inspection Features | Apollo 400+ | Apollo 500+ | Apollo 600+ |
| Auto-increment asset ID | |
|
|
| PAT Setup option to allow for custom menus | |
|
|
| Enter asset description after test using keypad or barcode scanner | |
|
|
| Point to point measurement (Earth Continuity & Insulation Resistance ) | Additional Test Lead required | |
|
| User configurable electrical test/visual inspection sequences | 25 | 100 | 100 |
| User set sites & locations | 50 | 100 | 100 |
| Risk based retest period calculator | |
|
|
| Comment lines against test records | 1 | 4 | 4 |
| Configurable checklists for any workplace PPM or PPE inspection | |
|
|
| On-board camera | |
||
| Universal risk assessment | |
||
| Health & safety certificates | |
||
| Data transfer features | Apollo 400+ | Apollo 500+ | Apollo 600+ |
| Upload previous results to tester for faster retesting | |
|
|
| 1D & QR scanner connectivity | Reads 1D data only | |
|
| Print pass & fail labels with barcode | 1D | 1D & QR | 1D & QR |
| Add your company logo to labels (large 1D labels only) | |
|
|
| Download to PC | USB Cable | USB Cable | USB Cable and USB Flash drive |
| Remote data transfer to Mobile Device via Wifi Hotspot | |
|
|
Case Studies
PAT lift off for South West electrical contractor with Seaward’s Apollo 600+
Investment in advanced technology is helping an electrical contracting business to complete rapid PAT (portable appliance testing) protocols as part of an intensive professional cu...
Going Underground for Seaward's PAT
Investment in advanced Seaward PAT (portable appliance testing) kits is helping London Underground comply with important electrical safety requirements. London Underground, one th...
Seaward’s Apollo Rockets Improved PAT Testing at Local Council
Oxfordshire City Council’s property maintenance and support services company is ensuring it meets its portable appliance testing (PAT) responsibilities with electrical safety tes...
TECC Enjoys Successful Lift-off with Apollo PAT Test Kits
Investment in the latest appliance testing technology is helping a specialist electrical contracting business to introduce dedicated company-wide testing protocols and standards as...
Request a Quote
Optional Accessories
Technical Specifications
| Earth Continuity (Rpe) | |
|---|---|
| Test Current | +/- 200mA DC |
| Measurement Range | 0.05Ω to 19.99Ω |
| Pass Value | User defined |
| IEC Lead Test | |
|---|---|
| Test Voltage | 5VAC nominal |
| Test | Live / Neutral Checks for o/c, s/c and crossed polarity |
| Touch Current | |
|---|---|
| Test Voltage | Supply voltage, maximum load current 16A |
| Measurement Range | 0.10mA to 5mA |
| Pass Value | User defined |
| Substitute (Alternative) Leakage Current | |
|---|---|
| Test Voltages | >25VAC <50VAC |
| Measurement Range | 0.20mA to 19.99mA |
| Pass Value | User defined |
| Power Socket Test | |
|---|---|
| Voltage Range | 207V – 253VAC |
| Indicates configuration of voltage potential:- | Line potential phase to earth |
| Line potential phase to neutral | Line potential neutral to earth |
| Insulation Resistance (IR) | |
|---|---|
| Test Voltage | 500V / 250VDC @ 1mA nominal |
| Measurement Range | 0.10MΩ to 19.99MΩ |
| Pass Value | User defined |
| Protective Conductor Current/Load | |
|---|---|
| Test Voltage | Supply voltage, maximum load current 16A |
| Measurement Range | 0.25mA to 19.99mA |
| Pass Value | User defined |
| Load Power/Current | |
|---|---|
| Test Voltage | 230V +10%, -15%, maximum load current 16A |
| Test Duration | Programmable up to a maximum of 240s |
| Measurement Range | 0.50A to 16.0A |
| RCD Test | |
|---|---|
| Test Voltage | 230V +10%, -15% |
| Test Current | 30mA / 150mA rms sinusoidal |
| Display Range | 0ms to 2000ms |
| Test Method | Internal isolation to avoid tripping distribution board RCD |
| General | |
|---|---|
| Memory size | up to 2,000 records |
| Weight | 1.5kg |
| Dimensions | 230mm x 150mm x 100mm |
| Power Source | Mains or rechargeable battery pack |
| Supported Printers | Test n Tag Pro (339A980) Test n Tag Elite 2 (339A989) |
