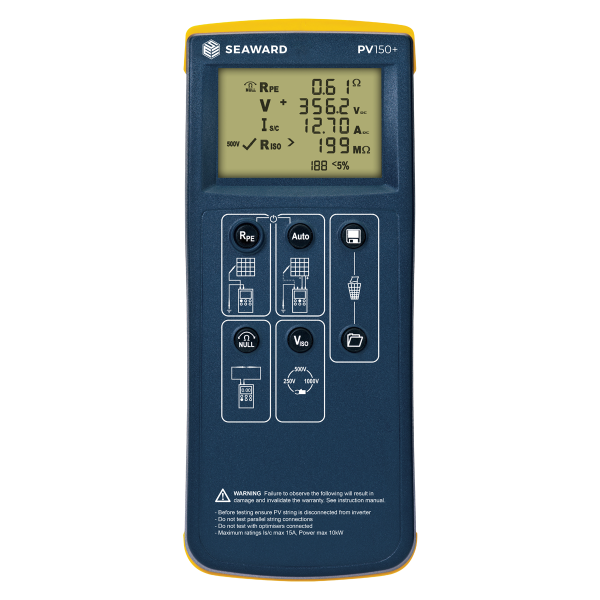

PV150+ Complete Test Kit

SPECIFICATIONS & MANUALS

If you're looking for the PV150+ Complete Test Kit datasheet featuring full technical specifications or the instruction manual, you can find them here.

Manuals

Datasheets

Specifications

Open Circuit Voltage Measurement (PV Terminals)
Display Range	0.0V DC – 1000V DC
Measuring Range	5.0V DC- 1000V DC
Resolution	0.1V DC maximum
Accuracy	± (0.5 % + 2 digits)
Enunciators	DC voltage polarity correct or reversed

Short Circuit Current Measurement (PV Terminals)
Display Range	0.00A DC - 15.00A DC
Measuring Range	0.50A DC - 15.00A DC
Maximum Power	10kW
Resolution	0.01A DC maximum
Accuracy	± (1% + 2 digits)

Earth Continuity Resistance Measurement (4mm Terminals)
Test Voltage Open Circuit	>4V DC, nominal
Test Current into	2 Ω >200mA
Display Range	0.00Ω - 199Ω
Measuring Range (EN 61557-4)	0.05Ω - 199Ω
Resolution	0.01Ω maximum
Accuracy	± (2% + 5 digits)
Test Leads Zero	Zero up to 10Ω, by zero button
Visible Warning	≥30V AC or DC at inputs
Circuitry Protection	Test inhibited if ≥30V AC or DC at inputs
Repeat tests as per IEC61557-4	Approx. 4000 1 second test

Insulation Resistance (Auto Test Sequence, PV Terminals and Red 4mm Terminal)
Test Voltage Open Circuit	250V, 500V, 1000V (as per IEC61557-2)
Test Voltage Specification	-0% +20% (open circuit)
Test Voltage @ 1mA	>1mA into UN x (1000Ω/V)
Test Current Short Circuit	<2mA
Display Range	0.05MΩ - 199MΩ
Measuring Range (EN 61557-2)	0.05MΩ - 199MΩ
Resolution	0.01MΩ maximum
Accuracy	0.05MΩ - 100MΩ ± (5% + 5 digits)
	101MΩ - 199MΩ ± (10% + 5 digits)
Visible Warning	≥ 30V AC or DC at inputs
Circuitry Protection	Test inhibited if ≥ 30V AC or DC at inputs
Repeat tests as per IEC61557-4	Approx. 3000 1 second tests

Rpe Voltage Measurement (4mm Terminals)
Display Range	30V - 440V AC/DC
Voltage Measuring Range	30V - 440V DC
	30V - 440V AC 50-60Hz
Resolution	1V
Accuracy	± (5% + 2 digits)

Operating Current (via AC/DC Current Clamp)
Display Range	0.1A - 40.0A
Current Measuring Range	0.1A - 40.0A DC
	0.1A - 40.0A AC 50-60Hz
Resolution	0.1A
Accuracy	± (5% + 2 digits)

DC Operating Power (via AC/DC Current Clamp and PV Terminals)
Display Range	0.00kW - 40kW
Measuring Range	0.50kW - 40kW
Resolution	0.01kW
Accuracy	± (5% + 5 digits)

Instrument Dimensions and Weight
Weight	1.1kg without batteries
Dimensions	26.4x10.7x8cm
Display	Custom LCD with backlight
Power Source	6 x 1.5V AA cells
Battery life	>1000 test sequences
Auto power down	User programmable
Onboard memory	Up to 200 complete test datasets

Connectivity
USB download to PC (CSV format)
Wireless “Solarlink TM” to Survey 200R (range ~30m/100ft)

Software compatibility
Compatible with SolarCert software (English language only) (Windows)

Open Circuit Voltage Measurement (PV Terminals)
Display Range	0.0V DC – 1000V DC
Measuring Range	5.0V DC- 1000V DC
Resolution	0.1V DC maximum
Accuracy	± (0.5 % + 2 digits)
Enunciators	DC voltage polarity correct or reversed

Short Circuit Current Measurement (PV Terminals)
Display Range	0.00A DC - 15.00A DC
Measuring Range	0.50A DC - 15.00A DC
Maximum Power	10kW
Resolution	0.01A DC maximum
Accuracy	± (1% + 2 digits)

Earth Continuity Resistance Measurement (4mm Terminals)
Test Voltage Open Circuit	>4V DC, nominal
Test Current into	2 Ω >200mA
Display Range	0.00Ω - 199Ω
Measuring Range (EN 61557-4)	0.05Ω - 199Ω
Resolution	0.01Ω maximum
Accuracy	± (2% + 5 digits)
Test Leads Zero	Zero up to 10Ω, by zero button
Visible Warning	≥30V AC or DC at inputs
Circuitry Protection	Test inhibited if ≥30V AC or DC at inputs
Repeat tests as per IEC61557-4	Approx. 4000 1 second test

Insulation Resistance (Auto Test Sequence, PV Terminals and Red 4mm Terminal)
Test Voltage Open Circuit	250V, 500V, 1000V (as per IEC61557-2)
Test Voltage Specification	-0% +20% (open circuit)
Test Voltage @ 1mA	>1mA into UN x (1000Ω/V)
Test Current Short Circuit	<2mA
Display Range	0.05MΩ - 199MΩ
Measuring Range (EN 61557-2)	0.05MΩ - 199MΩ
Resolution	0.01MΩ maximum
Accuracy	0.05MΩ - 100MΩ ± (5% + 5 digits)
	101MΩ - 199MΩ ± (10% + 5 digits)
Visible Warning	≥ 30V AC or DC at inputs
Circuitry Protection	Test inhibited if ≥ 30V AC or DC at inputs
Repeat tests as per IEC61557-4	Approx. 3000 1 second tests

Rpe Voltage Measurement (4mm Terminals)
Display Range	30V - 440V AC/DC
Voltage Measuring Range	30V - 440V DC
	30V - 440V AC 50-60Hz
Resolution	1V
Accuracy	± (5% + 2 digits)

Operating Current (via AC/DC Current Clamp)
Display Range	0.1A - 40.0A
Current Measuring Range	0.1A - 40.0A DC
	0.1A - 40.0A AC 50-60Hz
Resolution	0.1A
Accuracy	± (5% + 2 digits)

DC Operating Power (via AC/DC Current Clamp and PV Terminals)
Display Range	0.00kW - 40kW
Measuring Range	0.50kW - 40kW
Resolution	0.01kW
Accuracy	± (5% + 5 digits)

Instrument Dimensions and Weight
Weight	1.1kg without batteries
Dimensions	26.4x10.7x8cm
Display	Custom LCD with backlight
Power Source	6 x 1.5V AA cells
Battery life	>1000 test sequences
Auto power down	User programmable
Onboard memory	Up to 200 complete test datasets

Connectivity
USB download to PC (CSV format)
Wireless “Solarlink TM” to Survey 200R (range ~30m/100ft)

Service
2 year warranty (subject to terms and conditions, available at /warranty)
