Hand-held Electrical Safety Analyzer

- Test to IEC / EN 62353, NFPA-99, AS / NZ 3551 & more - Built -in electronic data storage - Flexible user-definable test routines - Simple PC communication link - Battery-powered insulation and earth/ground bond tests - 50/100/250/500V DC insulation testing - Automatic secondary verification ensures the correct result first time

Make an enquiry Request a Demo

Share with...

Overview

Features

Downloads

Battery Powered Testing

Lightweight and portable with battery-powered testing

On-Board Storage

Storage for test records, and customizable sequences and codes

Tests to International Standards

IEC/EN 62353, NFPA-99, and AS/NZS 3551

Earth continuity testing

Features an accurate, high current low power zap circuit

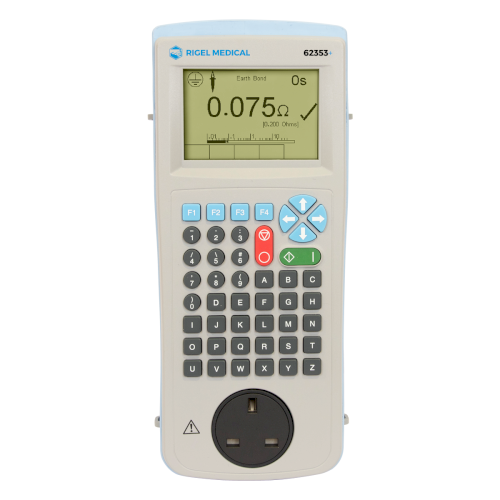

Rigel 62353+ Electrical Safety Analyzer

The Rigel 62353+ is the smallest and most flexible electrical safety analyzer on the market with battery powered earth/ground bond and insulation testing. It provides an accurate and fast solution for testing in accordance with the IEC 62353 safety standard.

Offering a range of tests without the need for mains power, the 62353+ is capable of conducting battery-powered insulation and earth/ground bond testing. This offers complete freedom to move around in often crowded rooms during the installation process, eliminating the inconvenience of trailing mains cables.

The 62353+ has low voltage insulation resistance tests (50V DC and 100V DC) to complement the 250V DC and 500V DC insulation tests that were present in its predecessor, the Rigel 62353. These tests conform to growing manufacturer’s test requirements for increasingly popular equipment running on 24V DC and 48V DC, such as operating tables, lights and mobile X-rays.
