SC08

SafeCheck 8 Power Tool Tester

US

Bench mounted comprehensive tester for the service, hire and rental industries.

Make an enquiry Request a Demo

Share with...

Overview

Features

Case Studies

Specifications

Downloads

HiPot

Ground Bond testing

DC Insulation Resistance

Load and Leakage test

Power cord and extension cord testing

Storage of results

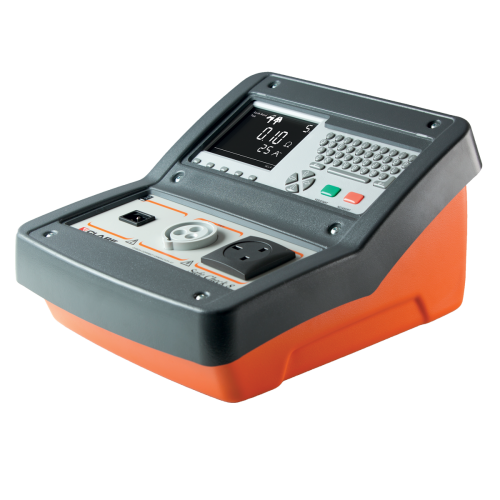

Clare SafeCheck 8

The SafeCheck 8 is a bench-mounted instrument, ideal for electrical safety testing in the hire, rental and service industries.

A simple user interface guides the operator through Class I, Class II and IEC extension power cord tests, with automated test sequences.

The results are recorded, and information is displayed on a large clear LCD screen. In order to eliminate potential data entry errors and to speed up the test process, the tester can also be used with a barcode reader which scans in the equipment’s ID number. SafeCheck 8 helps you meet your safety obligations whilst improving productivity.

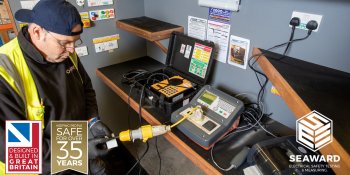

Case Studies

Request a Quote

Make an enquiry

Technical Specifications

Flash/Hipot Test (Class I)
Test Voltage Class l	1.25kV AC
Display Range	0.1 - 10 mA AC
Resolution	0.01mA
Accuracy	+/- 5% +/- 2 digits
Pass Levels	selectable up to 10mA

Flash/Hipot Test (Class II)
Test Voltage Class ll	2.5 kV AC
Display Range	0.1 - 10 mA AC.
Resolution	0.01mA
Accuracy	+/- 5% +/- 2 digits
Pass Levels	selectable up to 10mA

DC Insulation Test
Test Voltage	500V
Display Range	0.1 - 99.99MΩ
Accuracy	+/- 5% +/- 2 digits (up to 19.99MΩ)

Earth/Ground Bond Test
Test Voltage	Default Spec Value6V AC (open circuit)
Test Current	25A, 10A, 4A, 100mA AC into short circuit
Range	0.04Ω - 20Ω
Resolution	1mΩ
Accuracy	+/- 5% +/- 2 digits
Pass Levels	user selectable

Substitute Leakage (Short to Case Test)
Test Voltage	40V AC o/c
Display Range	0.1 - 20.0mA AC
Resolution	0.01mA
Accuracy	+/- 10% +/- 2 digits (1.00 - 20mA)
Pass Levels	selectable up to 15mA

Earth Leakage
Test Voltage	Mains Supply
Display Range	0.1 - 20.0mA AC
Resolution	0.01mA
Accuracy	+/- 10% +/- 2 digits (1.00 - 20mA)
Pass Levels	selectable up to 10mA

Power / Run / Load Tests
Resolution	0.01kVA
Measured Load	0 - 4kVA
Accuracy	+/- 10 of reading, +/- 2 digits

IEC Power Cord Test
Test Voltage	Default Spec Value40V AC
Detects	Good, Open, Short, Reversed

Mechanical
Dimensions	450W x 410H x 155D mm
Weight	Approx 8.8kg

Electrical
Supply Voltage	Selectable 115V / 230V 50 or 60Hz
Operating Temperature	0°C to +40°C
Storage Temperature	-10°C to +50°C
EN50191	Compliant when used with appropriate accessories

Supplied With
HT Probe
3 pin guard link connector
Earth bond clip
Mains lead
Instruction Manual

SafeCheck 8 Solutions package for automation and traceability, includes:
SafeCheck 8
Desk Test n Tag printer
Barcode Scanner
1000 white labels
PATGuard Lite 2

Flash/Hipot Test (Class I)
Test Voltage Class l	1.25kV AC
Display Range	0.1 - 10 mA AC
Resolution	0.01mA
Accuracy	+/- 5% +/- 2 digits
Pass Levels	selectable up to 10mA

Flash/Hipot Test (Class II)
Test Voltage Class ll	2.5 kV AC
Display Range	0.1 - 10 mA AC.
Resolution	0.01mA
Accuracy	+/- 5% +/- 2 digits
Pass Levels	selectable up to 10mA

DC Insulation Test
Test Voltage	500V
Display Range	0.1 - 99.99MΩ
Accuracy	+/- 5% +/- 2 digits (up to 19.99MΩ)

Earth/Ground Bond Test
Test Voltage	Default Spec Value6V AC (open circuit)
Test Current	25A, 10A, 4A, 100mA AC into short circuit
Range	0.04Ω - 20Ω
Resolution	1mΩ
Accuracy	+/- 5% +/- 2 digits
Pass Levels	user selectable

Substitute Leakage (Short to Case Test)
Test Voltage	40V AC o/c
Display Range	0.1 - 20.0mA AC
Resolution	0.01mA
Accuracy	+/- 10% +/- 2 digits (1.00 - 20mA)
Pass Levels	selectable up to 15mA

Earth Leakage
Test Voltage	Mains Supply
Display Range	0.1 - 20.0mA AC
Resolution	0.01mA
Accuracy	+/- 10% +/- 2 digits (1.00 - 20mA)
Pass Levels	selectable up to 10mA

Power / Run / Load Tests
Resolution	0.01kVA
Measured Load	0 - 4kVA
Accuracy	+/- 10 of reading, +/- 2 digits

IEC Power Cord Test
Test Voltage	Default Spec Value40V AC
Detects	Good, Open, Short, Reversed

Mechanical
Dimensions	450W x 410H x 155D mm
Weight	Approx 8.8kg

Electrical
Supply Voltage	Selectable 115V / 230V 50 or 60Hz
Operating Temperature	0°C to +40°C
Storage Temperature	-10°C to +50°C
EN50191	Compliant when used with appropriate accessories

Supplied With
HT Probe
3 pin guard link connector
Earth bond clip
Mains lead
Instruction Manual

SafeCheck 8 Solutions package for automation and traceability, includes:
SafeCheck 8
Desk Test n Tag printer
Barcode Scanner
1000 white labels
PATGuard Lite 2
